After reading this article from Pratap Vardhan with great interest, I wanted to build my own version of a Bar Chart Race that is smoother and a bit more beautiful. The biggest improvement is the interpolation (or augmentation) of the available data points in order to make the animation smoother.

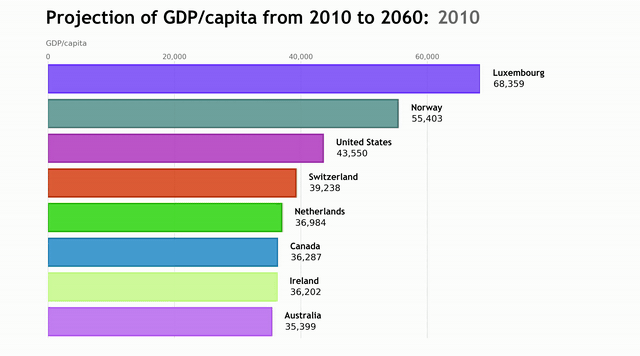

Here is the Bar Chart Race we are going to build in this article:
For the purpose of this demonstration, we are going to use a GDP per capita forecast dataset provided by the OECD. You can find the original dataset here.
You can find the full code via GitHub at the end of the article!
Importing Modules
We start by importing the modules. We are going to use pandas
for data handling, matplotlib
for the graphs, Numpy for matrix operations. The usage of
colorsys
and re
will be explained later in the code.
import pandas as pd
import numpy as np
import matplotlib
import matplotlib.pyplot as plt
import matplotlib.ticker as ticker
import matplotlib.animation as animation
import matplotlib.colors as mc
import colorsys
import re
from random import randint
Data Preparation
We read in the CSV file and get rid of all variables except GDP per capita. We then delete data entries that resemble regions instead of single countries and
delete all columns except Country
, Time
and Value
.
df = pd.read_csv("EO95_LTB_07012019070138125.csv")
df = df.loc[df['Variable'] == 'GDP per capita in USA 2005 PPPs']
df = df[((df.Country != 'OECD - Total') &
(df.Country != 'Non-OECDEconomies') &
(df.Country != 'World') &
(df.Country !='Euro area (15 countries)'))]
df = df[['Country', 'Time', 'Value']]
Now, we want to interpolate the data to make the animation smooth. In order to do that, we first pivot the data frame to wide format. I wrote a simple for-loop which adds the average value of two columns in between two existing values and assigns a numeric name, starting with the time value of the interpolated column. I add a ‘^’ to the name, so when I am displaying the time unit, I can easily get rid of everything behind this particular character.
When the last column of the data frame is reached, the code will run into an error because the df.iloc statement won’t be able to select a column (since it will
be non-existent). Therefore, I use a try/except statement and indicate whenever an interpolation is done. The steps of interpolation can be adjusted by changing
the n
in range(n)
in the for-loop.
Next, we pivot the table back to long format using the melt
method.
for p in range(3):
i = 0
while i < len(df.columns):
try:
a = np.array(df.iloc[:, i + 1])
b = np.array(df.iloc[:, i + 2])
c = (a + b) / 2
df.insert(i+2, str(df.iloc[:, i + 1].name) + '^' +str(len(df.columns)), c)
except:
print(f"\n Interpolation No. {p + 1} done...")
i += 2
df = pd.melt(df, id_vars = 'Country', var_name = 'Time')
Defining the Frames List
When creating animations with matplotlib
, we always need a list of all frames, that will be passed to the core function that draws each frame. Here we create
this frames list by taking all unique values of the time_unit
series and converting it to a list. I add the last value of the time_unit
series (the last point
in time) to the frames list five times in order to stop the animation for a few seconds at the end, before replay.
frames_list = df["Time"].unique().tolist()
for i in range(10):
frames_list.append(df['Time'].iloc[-1])
Defining the Color Schema
The next block of code assigns the colors of the bar chart. First, I use a function that can transform any color to a lighter/darker shade. I have found the
function in this Stackoverflow post. It requires the colorsys
module we imported at the beginning.
Next, we put all names in a list and create as many random HEX colors as there are names. The reason why we use random colors is to add more flexibility into the code. We want it to be reusable, even if the number of elements changes. Lastly, we create three lists of these colors: normal colors, slightly transparent colors and darker colors.
def transform_color(color, amount = 0.5):
try:
c = mc.cnames[color]
except:
c = color
c = colorsys.rgb_to_hls(*mc.to_rgb(c))
return colorsys.hls_to_rgb(c[0], 1 - amount * (1 - c[1]), c[2])
all_names = df['Country'].unique().tolist()
random_hex_colors = []
for i in range(len(all_names)):
random_hex_colors.append('#' + '%06X' % randint(0, 0xFFFFFF))
rgb_colors = [transform_color(i, 1) for i in random_hex_colors]
rgb_colors_opacity = [rgb_colors[x] + (0.825,) for x in range(len(rgb_colors))]
rgb_colors_dark = [transform_color(i, 1.12) for i in random_hex_colors]
Now we have arrived at the core function of this code!
We define a new data frame called df_frame
which contains the top elements in this point in time.
We then draw a bar chart in this particular time frame with the top elements using the correct color from the normal_colors
dictionary. In order to make the
chart prettier, we draw a darker shade around each bar using the respective color from the dark_color dictionary.
The rest of the function is simply formatting the graph. We write the name and the value next to each bar. Then, we display the time unit of each frame at the top right position. Here we make use of the ‘^’ character we assigned earlier when we did the interpolation. Using a regular expression we can get rid of all characters after the ‘^’ and then display the respective time unit. Here we need the re module we imported at the beginning.
Next, we add the chart title and axis label, and we format the numbers on the x-axis and display them at the top of the chart. We get rid of the y-axis ticks and add grid lines to the chart.
Lastly, we limit the number of ticks to 4, get rid of the black frame around the chart and adjust the margin on each side.
def draw_barchart(Time):
df_frame = df[df['Time'].eq(Time)].sort_values(by = 'value', ascending = True).tail(num_of_elements)
ax.clear()
normal_colors = dict(zip(df['Country'].unique(), rgb_colors_opacity))
dark_colors = dict(zip(df['Country'].unique(), rgb_colors_dark))
ax.barh(df_frame['Country'], df_frame['value'],
color = [normal_colors[x] for x in df_frame['Country']],
height = 0.8,
edgecolor = ([dark_colors[x] for x in
df_frame['Country']]), linewidth = '6')
dx = float(df_frame['value'].max()) / 200
for i, (value, name) in
enumerate(zip(df_frame['value'], df_frame['Country'])):
ax.text(value + dx, i + (num_of_elements / 50), ' ' +
name, size = 36, weight = 'bold', ha = 'left',
va = 'center', fontdict = {'fontname': 'Trebuchet
MS'})
ax.text(value + dx, i - (num_of_elements / 50),
f'{value:,.0f}', size = 36, ha = 'left',
va = 'center')
time_unit_displayed = re.sub(r'\^(.*)', r'', str(Time))
ax.text(1.0, 1.14, time_unit_displayed,
transform = ax.transAxes, color = '#666666',
size = 62, ha = 'right',
weight = 'bold', fontdict = {'fontname': 'Trebuchet
MS'})
ax.text(-0.005, 1.06, 'GDP/capita', transform = ax.transAxes,
size = 30, color = '#666666')
ax.text(-0.005, 1.14, 'Projection of GDP/capita from 2010 to
2060', transform = ax.transAxes, size = 62,
weight = 'bold', ha = 'left', fontdict = {'fontname':
'Trebuchet MS'})
x.xaxis.set_major_formatter(ticker.StrMethodFormatter(
'{x:,.0f}'))
ax.xaxis.set_ticks_position('top')
ax.tick_params(axis = 'x', colors = '#666666',
labelsize = 28)
ax.set_yticks([])
ax.set_axisbelow(True)
ax.margins(0, 0.01)
ax.grid(which = 'major', axis = 'x', linestyle = '-')
plt.locator_params(axis = 'x', nbins = 4)
plt.box(False)
plt.subplots_adjust(left = 0.075, right = 0.75, top = 0.825,
bottom = 0.05, wspace = 0.2, hspace = 0.2)
Animation
The last step of every Matplotlib animation is to call the FuncAnimation
method.
animator = animation.FuncAnimation(fig, draw_barchart,
frames = frames_list)
animator.save("Racing Bar Chart.mp4", fps = 20, bitrate = 1800)
And that’s it. Feel free to play around with the code and adjust it to your needs. If you have any suggestion or question feel free to leave a comment below!
Full Code on GitHub
Link: https://gist.github.com/gabriel-berardi/2598032da5ea0453cf3385c8ce73bafc
